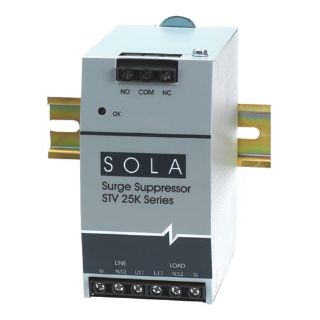

Actual Product May Vary From Image

STV25K-10S SHD

Name: STV25K-10S SHD
Brand: SolaHD (Emerson)
SKU: STV25K-10S SHD
Price: 333.63 USD
Availability: OutOfStock

TVSS 120V 1PH 0-135V DIN MTG

Manufacturer: SolaHD (Emerson)

Manufacturer part number: STV25K-10S

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$333.63

Qty:

Product Details

Brand Name

SolaHD

Type

STV 100 K Series Surge Protection Devices

Description

Surge Protection DIN Rail Mount, Input Voltage 120, Single Phase (L-N)

Application

Distribution Panels (<1200 A), Branch, Lighting and Control Panels, Factory Automation Installations, Dedicated Industrial Equipment

Standards

cULus Listed: UL 1449, 3rd Edition, type 2 locations, UL Listed: NEMA type 12 enclosure, CSA Listed: CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant

Features

100,000 amp peak current rating provides all mode protection against severe transients, Low clamping levels for more effective protection, 65 kAIC fault current fusing level provides safety and NEC conformance, LED status and audible alarms, Compact, rugged metal.

Specifications

Amperage Rating:	20 A
Connection:	Parallel
Country of Origin:	MX
Environmental Conditions:	0 to 95% non condensing
Frequency Rating:	47-63 Hz
Material:	Metal
Mounting:	Flange
Operating Temperature:	-40 to 60 DEG C
Phase:	3
Response Time:	.5n s
Size:	6.0 W x 4.0 D x 3.2 H
Type of Indicators:	Red & Green LED, Audible Alarm
Voltage Rating:	480 V
