STP480D07M FER

Name: STP480D07M FER
Brand: Mersen
SKU: STP480D07M FER
Price: 414.98 USD
Availability: InStock

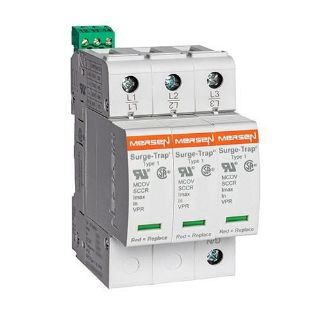

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

STP480D07M

CBT Inventory

Vendor Inventory

CBT - Cincinnati

CBT - Springboro

CBT - Sidney

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$414.98 / EA

Description

Brand Name

Mersen

Type

Type 1

Description

Mersen, STP480D07M, Pluggable AC Surge Protective Device, Type 1, Series: STP, 480 VAC Electrical Rating, 50, 60 Hz Frequency, 3 Pole, 2 Wires, 200 kA Short Circuit, 75 kA Peak Surge Current, 10 kA Nominal Discharge, Modes of Protection: L-L, <25 ns Response, Microswitch Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating/Storage, IP20 Enclosure, DIN Rail Mounting, Box Terminal, Polyethelene Terphthalate, 4.19 in L x 2.07 in W x 2.81 in H Dimensions

Application

Used for control panels, factory automation installation, programmable logic controllers, and other industrial applications

Standards

ANSI/UL 1449 4th Edition, Type 1 Component Assembly SPD, File E210793 | ANSI/IEEE C62.41.1, C62.41.2, C62.45 | RoHS Compliant

Features

Featuring a fail-safe self-protected design, visual indicator and a small footprint
A remote indicator option provides status to critical control circuitry
The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices
Easy installation or retrofit
Visual indicator
Small footprint
No additional overcurrent protection devices required
Easy to replace modules

Includes

Audible Alarm, Form C Dry Contact

Specifications

Country of Origin:	MX
Dimensions:	4.19 in L x 2.07 in W x 2.81 in H
Electrical Ratings:	480 VAC
Enclosure Type:	IP20
Environmental Conditions:	-40 to 85 deg C Operating/Storage
Frequency Rating:	50, 60 Hz
Indicator Type:	Microswitch
Material:	Polyethelene Terphthalate
Modes of Protection:	L-L
Mounting Type:	DIN Rail
Nominal Discharge Current:	10 kA
Number of Poles:	3
Number of Wires:	2
Peak Surge Current:	75 kA
Phase:	3
Response Time:	<25 ns
Series:	STP
Short Circuit Current Rating:	200 kA
Terminal Type:	Box
